Chip
Apple M4 Max chip
- 14-core CPU with 10 performance cores and 4 efficiency cores
- 32-core GPU
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 410GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Configurable to:
- M4 Max with 16‑core CPU, 40‑core GPU, and 16‑core Neural Engine (546GB/s memory bandwidth)
Apple Intelligence
Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.
Memory
- 36GB unified memory
Configurable to:
- 48GB, 64GB, or 128GB (M4 Max with 16-core CPU and 40‑core GPU)
Storage
- 512GB SSD
Configurable to:
- 1TB, 2TB, 4TB, or 8TB
Display Support
M4 Max
Simultaneous support for up to five displays:
- Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
- Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
Thunderbolt 5 digital video output
- Support for native DisplayPort 2.1 output over USB‑C
HDMI display video output
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Support for variable refresh rate (VRR), HDR, and multichannel audio
- Built-in speaker
- 3.5 mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output

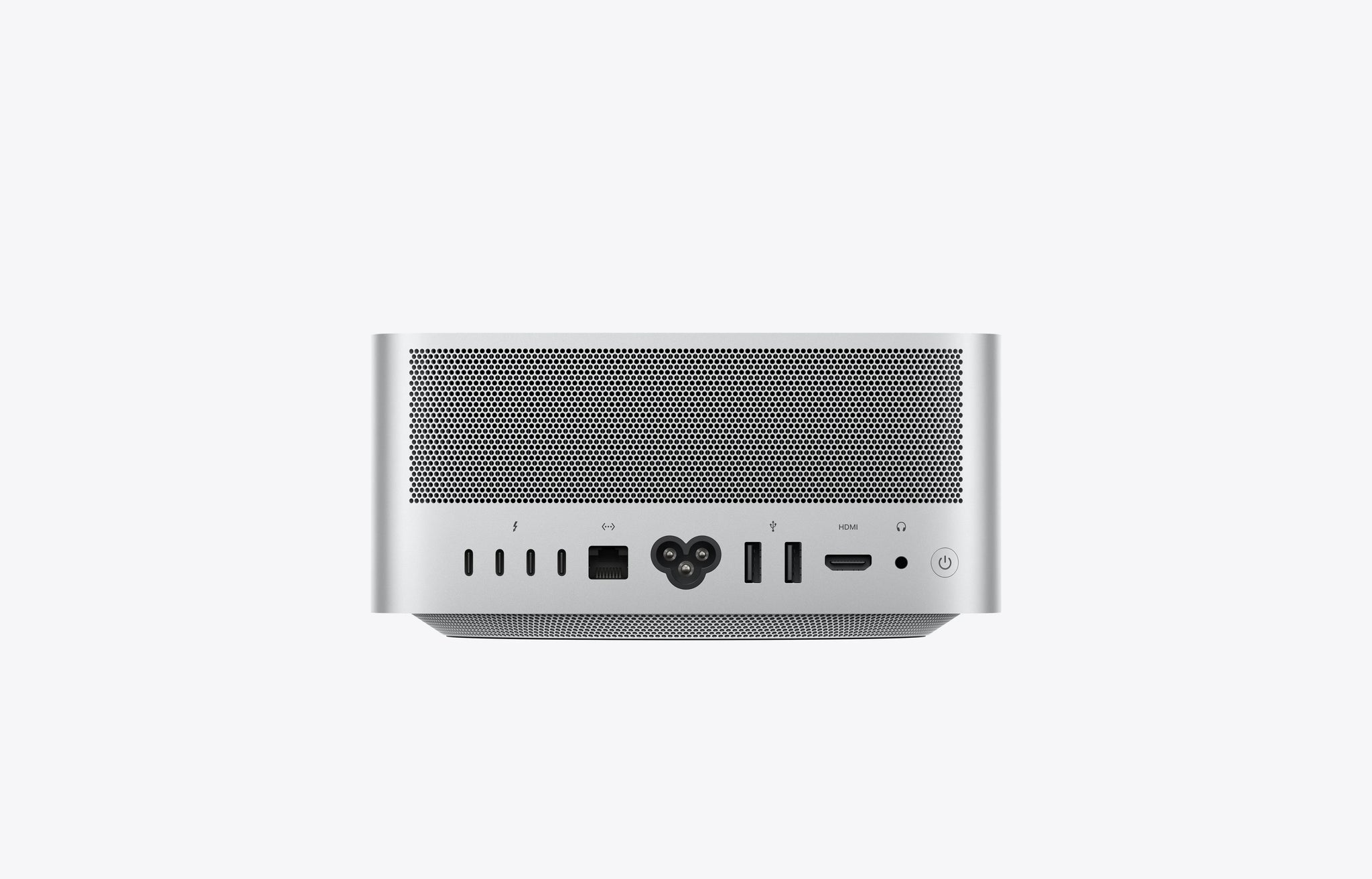

Connections and Expansion
Four Thunderbolt 5 (USB‑C) ports with support for:
- Thunderbolt 5 (up to 120Gb/s)
- USB 4 (up to 120Gb/s)
- USB 3 (up to 10Gb/s)
- DisplayPort 2.1
- Two USB 3 (USB‑A) ports (up to 5Gb/s)
- HDMI 2.1 port
- 10Gb Ethernet
- 3.5 mm headphone jack

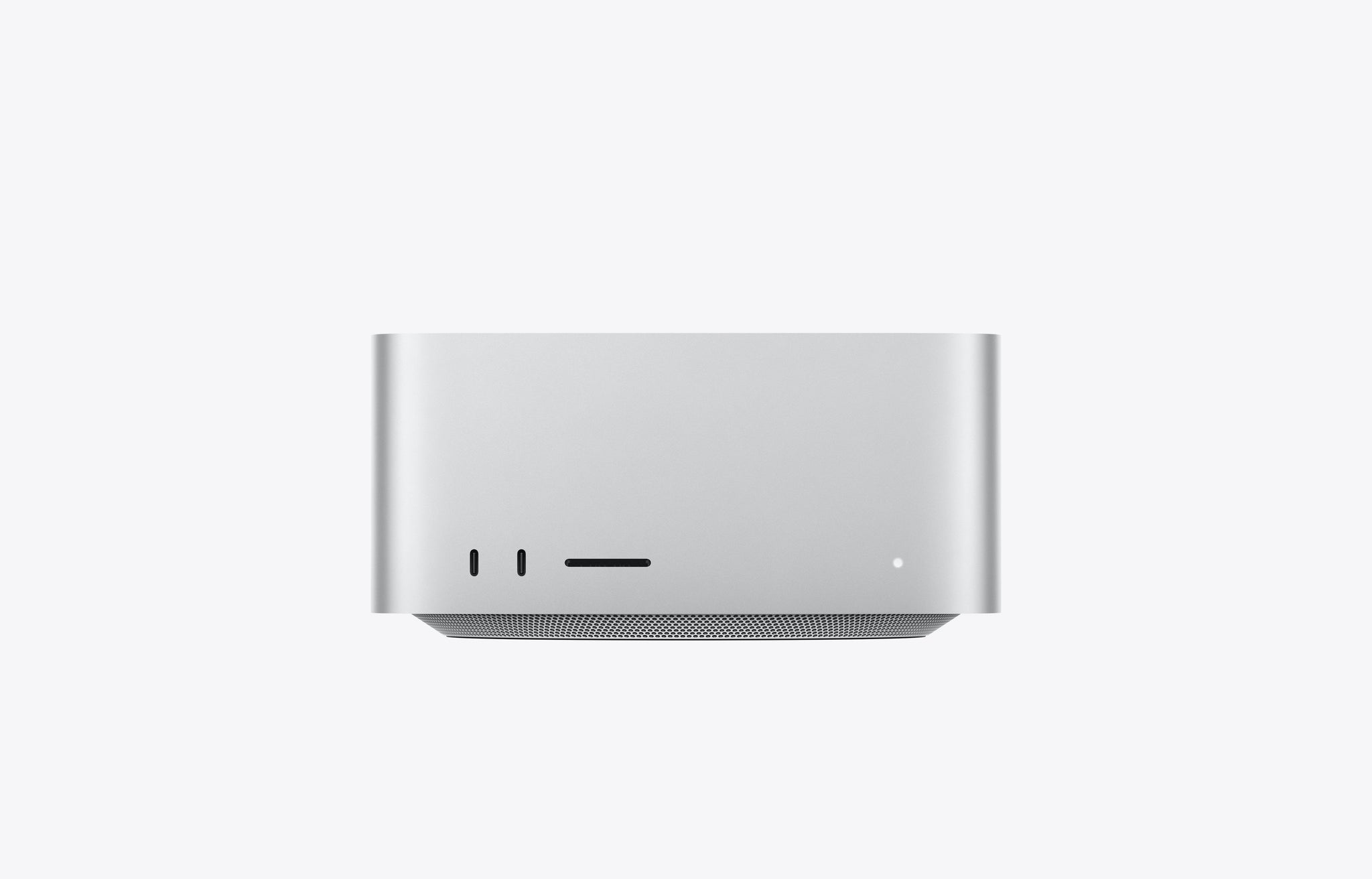

On front (M4 Max):
- Two USB‑C ports (up to 10Gb/s)
- SDXC card slot (UHS-II)
Communications
Wi-Fi
- Wi-Fi 6E (802.11ax)
Bluetooth
- Bluetooth 5.3
Ethernet
- 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
Size and Weight
- Height: 3.7 inches (9.5 cm)
- Width: 7.7 inches (19.7 cm)
- Depth: 7.7 inches (19.7 cm)
- Weight (M4 Max): 6.1 pounds (2.74 kg)
Electrical and Operating Requirements
- Line voltage: 100–240V AC
- Frequency: 50Hz to 60Hz, single phase
- Maximum continuous power: 480W
- Operating temperature: 50° to 95° F (10° to 35° C)
- Storage temperature: –40° to 116° F (–40° to 47° C)
- Relative humidity: 5% to 95% noncondensing
- Operating altitude: tested up to 16,400 feet (5000 meters)
In the Box
- Mac Studio
- Power cord
Operating System
macOS
macOS is the most advanced desktop operating system in the world. It helps you stay productive and creative with help from Apple Intelligence, iPhone Mirroring,5 window tiling, major updates to Safari, and more.
Accessibility
Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
Voice Control, Increase Contrast, Switch Control, VoiceOver, Reduce Motion, Live Captions, Zoom, Siri and Dictation
Built-in Apps
App Store, Books, Calendar, Contacts, FaceTime, Find My, Freeform, GarageBand, Home, iMovie, iPhone Mirroring, Keynote, Mail, Maps, Messages, Music, News, Notes, Numbers, Pages, Passwords ,Photo Booth, Photos, Podcasts, Preview, QuickTime Player, Reminders, Safari, Shortcuts, Stocks, Time Machine, Tips, TV, Voice Memos, Weather
Configure to Order
Configure your Mac Studio with these options:
M4 Max with 16‑core CPU, 40‑core GPU, and 16‑core Neural Engine
48GB, 64GB, or 128GB unified memory (M4 Max with 16-core CPU and 40‑core GPU)
1TB, 2TB, 4TB, or 8TB SSD
Mac Studio and the Environment
Progress toward Apple 2030
More than 30% recycled content8
Over 35% of manufacturing electricity sourced from low-carbon electricity
Over 30% emissions reduction against business-as-usual scenario as modeled by Apple
See Apple’s commitment
Materials
100% recycled aluminum in the enclosure and thermal module chassis
100% recycled copper in multiple printed circuit boards
100% recycled gold in the plating of all Apple-designed printed circuit boards and multiple connectors
100% recycled rare earth elements in all magnets
100% recycled tin in the solder of multiple printed circuit boards
100% recycled copper and zinc in the prongs of the power cord plug and AC inlet
At least 25% recycled plastic in three components
100% fiber-based packaging
59% recycled content in fiber-based packaging
Energy
Over 35% of manufacturing electricity for Mac Studio is sourced from low-carbon electricity
ENERGY STAR® certified
Waste
No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program
Smarter chemistry
Mercury-, BFR-, and PVC-free
